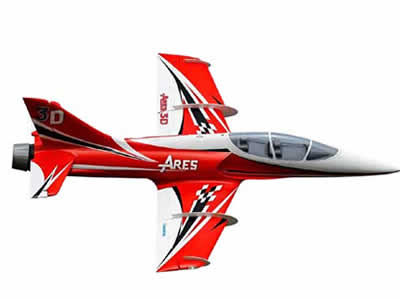

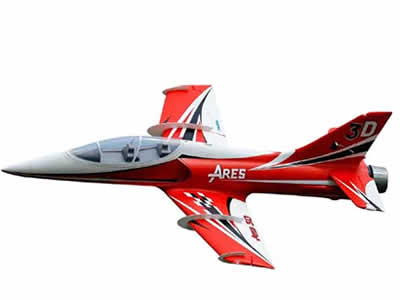

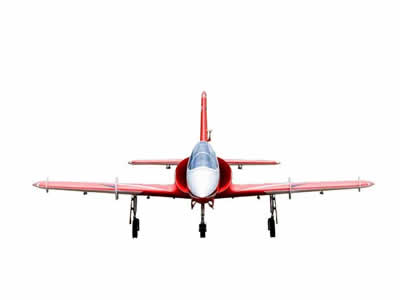

Freewing Ares 90mm Red ARF Plus RC Jet
1.it requires EDF Power Motor system and Electronic Speed Controller (ESC).
2.it requires 8 Channel Radio,8 Channel Receiver
3.it requires 6 Cell 22.2V 5000 - 6000 mAh Lipo Battery with EC5 connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
This item is available in stock，we will ship the package box within 48 hours after the buyers pay money via paypal.
The new 2025 version of the Freewing Ares 3D 90mm Red White ARF Plus RC Jet comes with basic decals pre-applied, however red white decals are UNAPPLIED. This allows our customers to have more freedom to choose their own custom decals if so desired.
The Freewing Ares 3D 90mm Red ARF Plus RC Jet is one of the most unique EDF jets in both looks and function, and now it's available in this all new 6S version and 8S version. This is a 100% new Freewing Ares 3D 90mm Red ARF Plus RC Jet. There were two big goals for this model. This model had to be fast In order to achieve speed and efficiency, a 100% new power system was created for this plane.
Scale, CNC Landing Gear
The all-new Freewing Ares 3D 90mm Red White ARF Plus RC Jet sports impressively looking scale, grey-painted landing gear, CNC-made for both outstanding looks and durability.
Functioning Scale Airbrake
The Freewing Ares 3D 90mm Red ARF Plus RC Jet includes a functioning scale airbrake, operating on a linear electric actuator to help aid in high alpha maneuvers as well as slowing the plane down after landing.
Spring-Loaded Top Cheaters
Incorporating an innovative ammenity, Freewing has added spring-loaded top-side cheaters that only open and close based on air pressure differential.
100% All-New Molding
TheFreewing Ares 3D 2025 addition is an entirely new mold with new and updated features and closer-to-scale detail that dwarfs the original version.
Features:
- NEW! It is made with High quantity EPO Airframe
- NEW! The PNP version has 120 Amp ESC with 10A UBEC
- NEW! Thrust Reversing function for shorter landings
- NEW! Functional scale air brake for high alpha and help with shorter runways
- Flight surfaces are controlled with 10 units 9g servos and 2 units 17g digital metal gear servos for precise movement, strength and long life
- Bright 7 units LED landing and navigation lights for enhanced realism and dawn/dusk maneuvers
- Electronic retractable landing gear with CNC shock-absorbing struts and metal trunnions
- Scale, sequenced gear doors provide added realism and improved aerodynamics
- Nylon hinges on all control surfaces
Includes:
- Freewing Ares 3D 90mm Red ARF Plus RC Jet
- All Servo,7 units LED lights, retracts and Aluminum Alloy Lading Gear Set pre-installed
Requires:
- 8 Channel radio - select a minimum 8 channel radio
- 8 Channel receiver - select a minimum 8 channel receiver
- 6 Cell 22.2V 5000 - 6000 mAh Lipo Battery with EC5 connector
- 90mm EDF Power Motor system and electronic speed controller (ESC).
- 6 Cell compatible battery charger -please select a minimum 6 cell (6S) charger
SPECIFICATIONS:
| Model Scale | N/A |
| Wingspan | 1156mm / 45.51in |
| Length | 1400mm / 55.11in |
| Empty Weight | 2350g |
| CG (Center of Gravity) | 215mm from the leading edge of the wing's root |
| Power System | 3668-1960Kv Brushless Motor or 4075-1350KV Brushless Motor(not included) |
| Electronic Speed Control | 1 unit 120A Electronic Speed Controller(ESC)(Not included) with 1 units 10A BEC (not included) |
| Propeller / EDF(Not included) | 12-Blade 90mm EDF (Not included) |
| Servos |
|
| Landing Gear | Electronic, CNC retractable scale gear |
| Required Battery | 6 Cell 22.2V 5000-6000 mAh LiPo Battery (not included) |
| Required Radio | 8 Channel (not included) |
| Ailerons | Elevons |
| Elevator | Elevons |
| Rudder | Yes |
| Flaps | No |
| Lights | Yes |
| Hinge Type | Nylon |
| Material | EPO Foam |
| Skill Level | Advanced/Expert |
| Build Time | 30 minites |
| Recommended Environment | Outdoors |
