Freewing Super Scorpion 80mm EDF Jet ARF RC Airplane
Freewing Super Scorpion 80mm EDF Jet ARF verison RC Airplane
1.REQUIRES 3530-1750KV brushless outrunner motor.
2.REQUIRES 6 Channel Radio,6 Channel Receiver
3.REQUIRES 6 Cell 22.2V 4000-5000 mAh LiPo Battery with EC5 connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
Note: it is Kit Version, there is no Servos, no motor, no fan unit and no ESC in the package
Freewing's 80mm Super Scorpion is the perfect size for easy transport yet still containing the thrust of a 6s 80mm 12 blade power system. The rigid, carbon fiber reinforced wings are removable with screws, as are the unique vertical stabilizers, and full flying horizontal stabilizers. Metal gear servos on the elevator ensures positive control. The Super Scorpion also uses the larger Stinger 90-sized nose retract and trailing link struts all around for durable grass field operation. Plastic main gear doors and a spring-hinged full coverage nose gear door minimizes drag. A smartly designed NACA duct in the bottom of the nosecone draws air into the battery compartment to cool the battery.it made by China Freewing manufacturer,ship worldwide as gift to buyer.
or pilots who have flown other aircraft in Freewing's 80mm Jet Series, the Super Scorpion blends the stability of the F-86 Sabre in an agile package slightly slower than the Mirage 2000. While the Super Scorpion has a wider fuselage than the Mirage, we appreciated the Super Scorpion's larger battery bay to accommodate our Admiral 6s 4000, 4500, or 5000 mAh-sized battery packs. The Super Scorpion is designed for intermediate to advanced EDF pilots.
REQUIRES:
- 12 Blade factory balanced EDF with metal housing and 3530-1750KV brushless outrunner motor produces realistic jet turbine sound
- Composite fan blades combined with metal EDF housing make the Super Scorpion AMA compliant
- Super scale details include hand painted, scale-sized pilots and full instrument panel
- Super Scorpion graphics in easily visible red/white Swiss Scheme
- Official insignia decal of Aviation Design, the innovative creators of the Super Scorpion
- 80 Amp ESC with 5A BEC
- Electronic retractable landing gear with all metal shock-absorbing struts

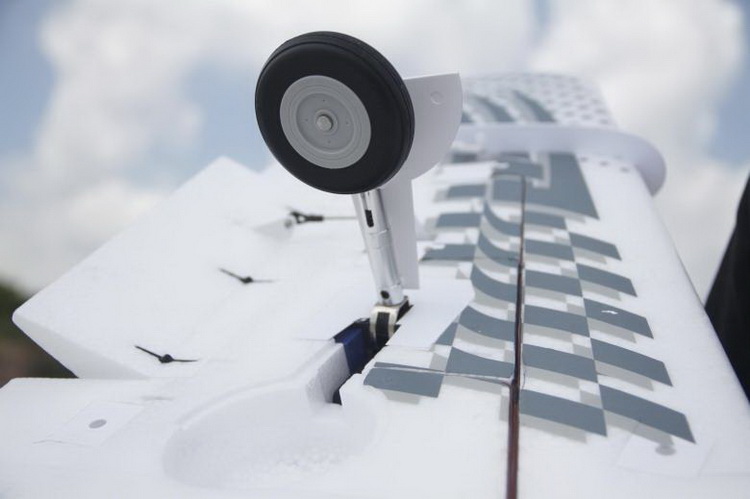

- Steerable, shock absorbing nose gear for enhanced ground maneuverability
- Spring operated nose gear door
- Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
- Nylon hinges on all control surfaces (superior to foam hinges)
- Outrunner motor, servos, ESC and EDF come pre-installed for your convenience
- Removable wings and vertical stabilizers for convenient transport
Package details:
Freewing 80mm 12-Blade Metal EDF Super Scorpion - Kit Version
there is no Servos, no motor, no fan unit and no ESC in the pckage
REQUIRES:
- Servos, motor, fan unit and ESC.
- 6 Channel Radio - Select a minimum 6 channel radio
- 6 Channel Receiver - Select a minimum 6 channel receiver
- 6 Cell 22.2V 4000-5000 mAh LiPo Battery with EC5 connector
- 6 Cell Compatible Battery Charger - Select a minimum 6 cell (6S) charger
PRODUCT SPECIFICATIONS:
Wingspan |
970mm / 38.1in |
Length |
1150mm / 45.27in |
Flying Weight |
2300g / 81.13oz |
| CG (Center of Gravity) | 160-170mm from the leading edge of the intakes |
Power System |
3530-1750kV Brushless Outrunner Motor |
Electronic Speed Control |
80A ESC, 5A BEC, EC5 Connector |
Propeller / EDF |
80mm Metal EDF with 12 Blade Fan |
Servos |
9g metal gear standard with 300mm lead : nose gear steering |
| Landing Gear | Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
Required Battery |
6S 22.2V 4000mAh-5000mAh LiPo (required) |
Required Radio |
6 Channel |
| Ailerons | Yes |
Elevator |
Yes |
| Rudder | Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon hinges |
| Material | EPO Foam |
| Skill Level | Advanced Intermediate / Advanced |
| Build Time | 30 Minutes |
| Recommended Environment | Outdoor |
