Freewing A-10 Thunderbolt II Super Scale Twin 80mm EDF Jet ARF PLUS Servos RC Airplane
1.REQUIRES 2x 3530-1900KV Brushless Outrunner Motors (not included in the package).
2.Require 6 Channel Radio,6 Channel Receiver
3.2x 100 Amp ESCs with EC5 Connectors (not included).
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
Important Note:
This is the ARF+Servo version for pilots who wish to install their own power system. All primary electronics including servos and landing gear come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
The Freewing 80mm A-10 was specifically designed to be the most grass-capable PNP EDF on the market. While sporting a scale Oleo nose strut, the main struts are tensioned trailing links and the foam rubber tires are over 3 tall and 1 wide. In the air, the A-10 can deliver a fully scale flight profile. Tall vertical loops, hard "jinking" turns, stable slow flight, and authoritative power. Critically, this model was designed to fly at all throttle points, both upright and inverted, without pitch sensitivity.
As a semi-scale model, the Freewing 80mm A-10 is finished from the factory in USAF two tone gray. A waterslide decal set with over 50 utility markings and three complete A-10 liveries, is included for the pilot to customize his or her A-10. These decals proudly represent Indiana's 163rd Fighter Squadron Blacksnakes, Louisiana's 47th Fighter Squadron Termites and Georgia's 23rd Fighter Group "Flying Tigers" (Artwork courtesy of Boom and Zoom Graphics).
FEATURES:
Largest foam electric PNP A-10 Warthog in the world
Award Winner at AEF 2017 for "Best Scale Jet"
Full complement of highly detailed weapons included in the box (CAS loadout); a $50 Value!
Weapon plyons are individually removable from the wing and each weapon can be placed on any of the 8 included plylons for total customization.
Grass-ready retracts with metal trunions and 5mm hardened steel pin
Multi-material (full carbon fiber spars, plywood ribs, and aluminum blocks) wing structure for best balance of rigidity and smooth flight handling
Scale wheel hubs and sequenced nose gear door

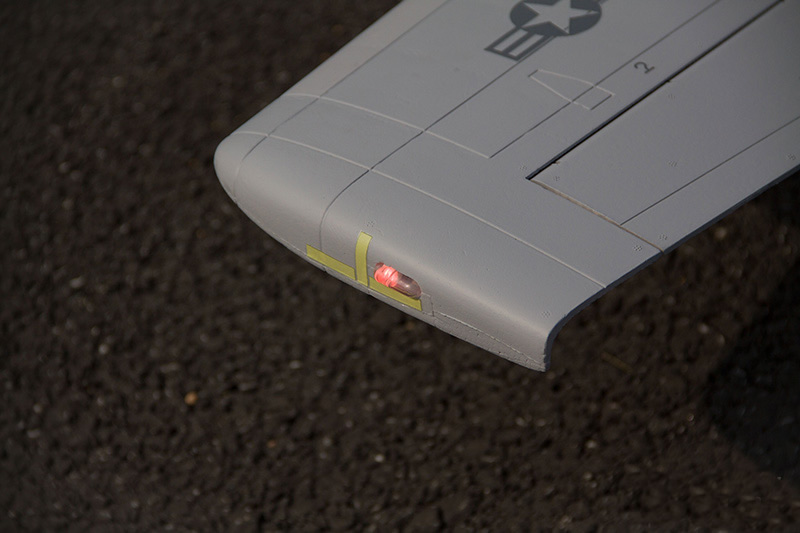

DayBright LEDs and sequenced landing light
Screw-on wings and tail surfaces
Flexible wing wire harness for ultimate reliability and resistance to disconnection during wing flexing
Spacious battery bay, no cutting required
Digital Metal Gear Servos throughout
Three unique livery options and 50 different utility decals are included in the box for maximum customization
90mm bolt-on nacelles for those who wish to install a 90mm power system (sold separately)
Model officially licensed by Northrop Grumman
INCLUDES:
Freewing A-10 Thunderbolt II Super Scale Twin 80mm EDF Jet - ARF PLUS
Servos, LED lights and electronic retracts pre-installed
REQUIRES:
Brushless motors, EDF units and ESCs (see specifications for details)
6 Channel Radio - Select a minimum 6 channel radio
6 Channel Receiver - Select a minimum 6 channel receiver
TWO 6 Cell 22.2V 4000 - 6000 mAh LiPo Batteries with EC5 Connectors - We recommend 2 Admiral 6 Cell 5000 mAh LiPo batteries
6 Cell Compatible Battery Charger - Select a minimum 6 cell (6S) charger
SPECIFICATIONS:
Wingspan |
1700mm / 66.92in |
Length |
1551mm / 61.06in |
Flying Weight |
5406g / 190.69oz with two 6S Admiral 4000 mAh LiPo Batteries |
| CG (Center of Gravity) | 78mm back from the leading edge of the wing root, with the aircraft upright and gear down |
Recommended Power System |
2x 3530-1900KV Brushless Outrunner Motors (not included) |
Recommended Electronic Speed Control |
2x 100 Amp ESCs with EC5 Connectors (not included) |
Recommended Propeller / EDF |
2x 80mm EDFs with 9 Blade Fans (not included) |
Servos |
9g metal gear digital standard with two 300mm leads : landing gear door |
| Landing Gear | Grass-ready scale oleo nose strut and tensioned trailing link main struts |
Required Battery |
2x 6S 22.2V 4000mAh - 6000mAh LiPo with EC5 Connector |
Required Radio |
6+ Channel |
| Ailerons | Yes |
Elevator |
Yes |
| Rudder | Yes |
Flaps |
Yes |
Lights |
Yes |
Hinge Type |
Nylon reinforced hinges |
| Material | EPO Foam |
| Skill Level | Advanced |
| Build Time | 1+ Hours |
| Recommended Environment | Outdoor |
